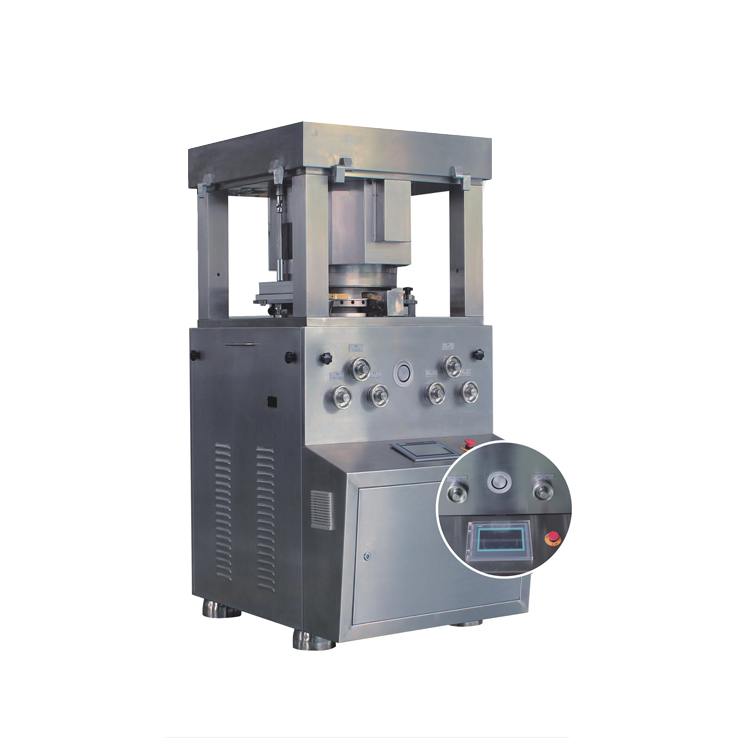

Home » Products » Tablet Press Machine » GZP420i Double Discharging Rotary Tablet Press
Equipment performance
Has a preloading function
Adopts PLC programmable control
Man-machine interface, easy to operate Shows the main pressure, fillling volume, slice thickness, speed, output
With overpressure alarm function
Using quantitative lubricating function
Feeding methods, forced feeder
Tablet pressing chamber meet GMP requirements
Technical parameters
|
參數 |
Data |
GZP29i |
GZP37i |
GZP39i |
GZP45i |
|
沖桿直徑 |
Punch Diameter (mm) |
26 |
22 |
22 |
10 |
|
最大壓片直徑 |
Max Tablet Diameter (mm) |
22 |
12 |
12 |
10 |
|
最大轉速 |
Max Rotation Speed (r/min) |
40 |
40 |
40 |
40 |
|
最大填充深度 |
Max Filling Depth (mm) |
18 |
18 |
18 |
18 |
|
最大產量 |
Max Production Capacity (pc/h) |
139200 |
177600 |
187200 |
216000 |
|
最大主壓力 |
Max Main Pressure (kn) |
80 |
80 |
80 |
80 |
|
最大預壓力 |
Max Pre- pressure (kn) |
15 |
15 |
15 |
15 |
|
主電機功率 |
Main Motor Power (kw) |
4KW |
4KW |
4Kw |
4Kw |
|
設備占地面積 |
Machine Area (mm) |
850x 1100 |
850x1100 |
850x 1100 |
850x1100 |
|
設備高度 |
Machine Height (mm) |
1750 |
1750 |
1750 |
1750 |
|
設備重量 |
Machine Weight (kg) |
2050 |
2050 |
2050 |
2050 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Gzpk620 double discharge high-speed rotary tablet press is designed with double forced feeding and double discharge structure. The process of filling, metering, pre pressing, main pressing and tablet discharging is completed twice a week by rotating the punching plate. The maximum output can reach 580000 tablets / hour. The equipment has stable working performance, stable machine operation and low noise. Replace one set of guide rail, press double-layer piece.
Learn More
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Learn More
