Home » Products » Liquid Filler » PXG/8 Spray Bottle Capping Machine

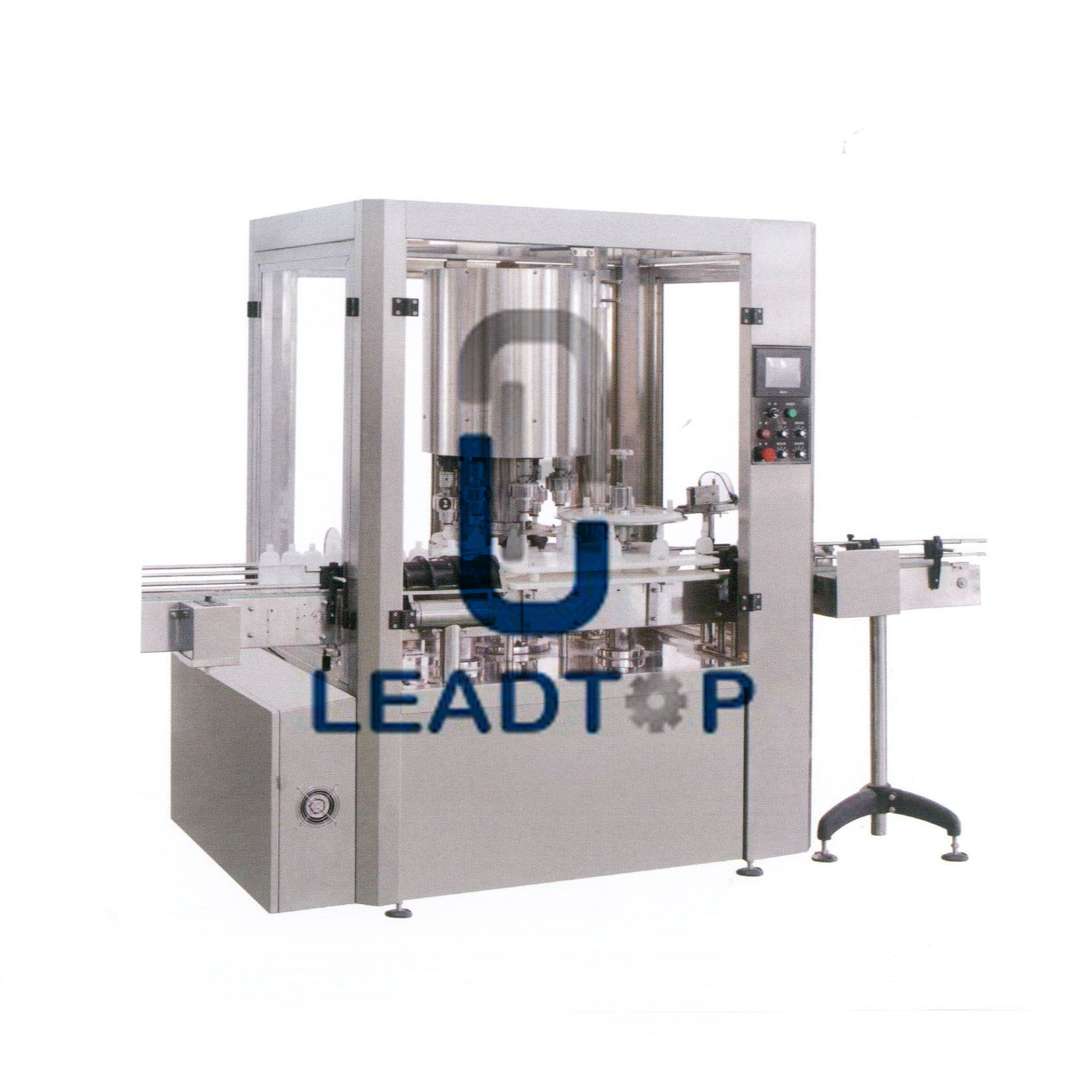

This series of machines is applied for screwing spray pump onto bottle mouth in industry of pharmaceutical and cosmetic field. As for the slim and long tube of the spray pump, this machine equip manipulate guider which can lead the long tube right into bottle mouth.
Feature
u Rotary type of spray capping unit with auto orient spray pump, speed fast and working stably, high efficient production and low space location
u Manipulate guider ensure the long tube of spray pump 100% into bottle mouth.
Main technical parameter
u Capping heads:8
u Capacity:100-120bpm
u Power supply:220V/380V
u Rated power:≤3Kw
u Qualified capping:≥99.8%
u Net weight:2000Kg
u Overall dimennsion:2200*1300*2000（mm）
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
The eysdrop aseptic filling line consist of four main units including unscrambler, conveyor, pure air washer, monobloc of filling plugging and capping unit. Themachine is mainly used to accomplish bottle unscrambling, conveying, air washing, dosage discharging, plug & capplacing, The entire production process is protected under laminar flow H14 and aseptic isolation cover, which isolated all working area and keep eyedrops product be filled under aseptic environment. The regional isolation protection to ensure that the eye drops sterile production. The whole machine meet the requirements of new GMP. The production line is also suitable for the production of other similar plastic bottle.
Learn More
This production line is mainly used in pharmaceutical, healthcare products such as oral liquid, syrup, liquor, healthcare product, tincture in different viscosity packing.
Learn More
This production line is mainly used in pharmaceutical, healthcare products such as oral liquid, syrup, liquor, healthcare product, tincture in different viscosity packing.
Learn More

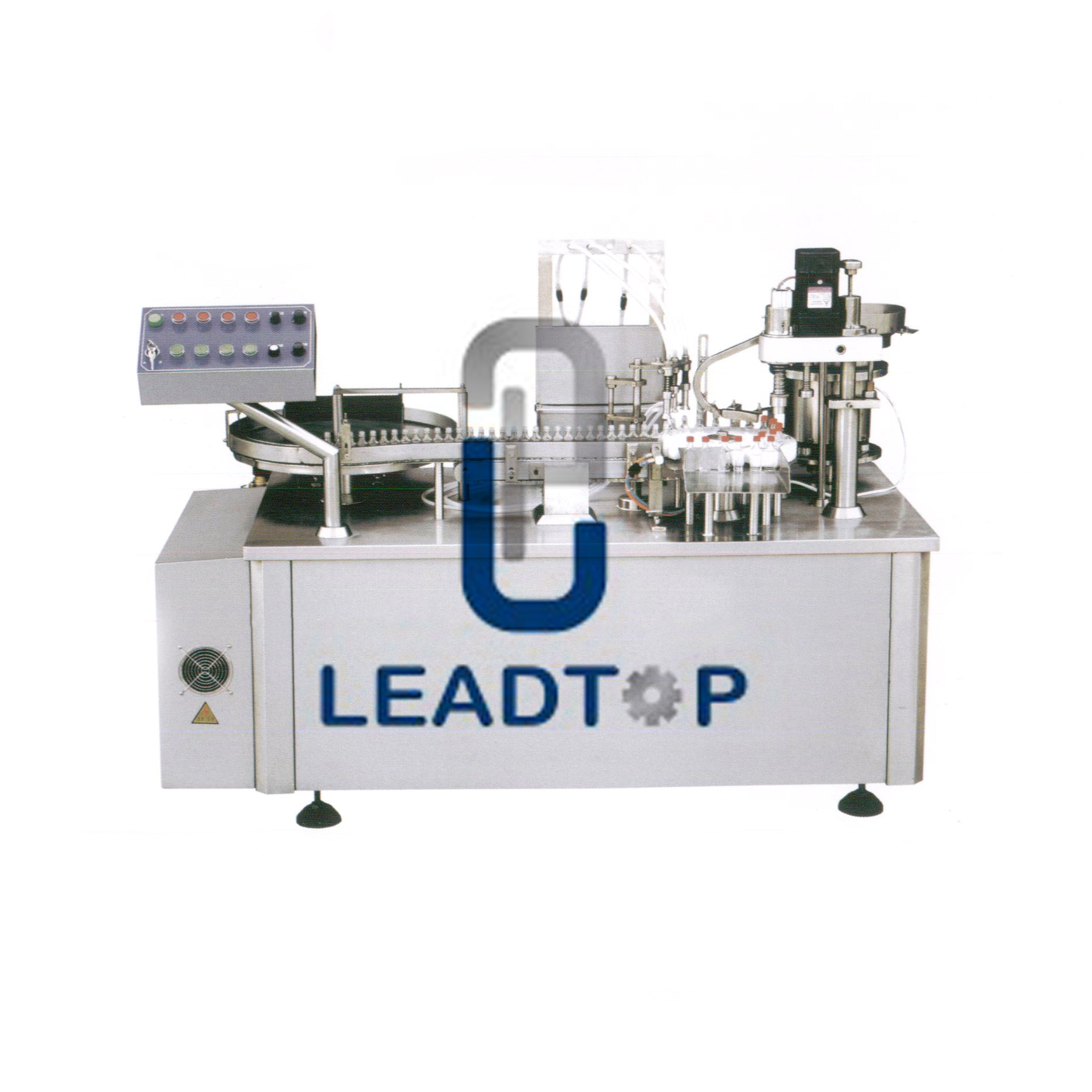

This liquid filling & capping machine is new generation utility product, which is best suitable ofr needle-insert filling in the small opening mouth of bottle less than 3.0mm. It can automatically accomplish bottle in-feeding, filling, cap placing, and screw capping. Vacuum suck system is specially used to accumulate the rudimental oil attached outside surface of bottle and nozzles, avoid the oil overflowing onto the surface of bottle to gog against label stick. This machine is design and produce accordance with regulation.
Learn More
