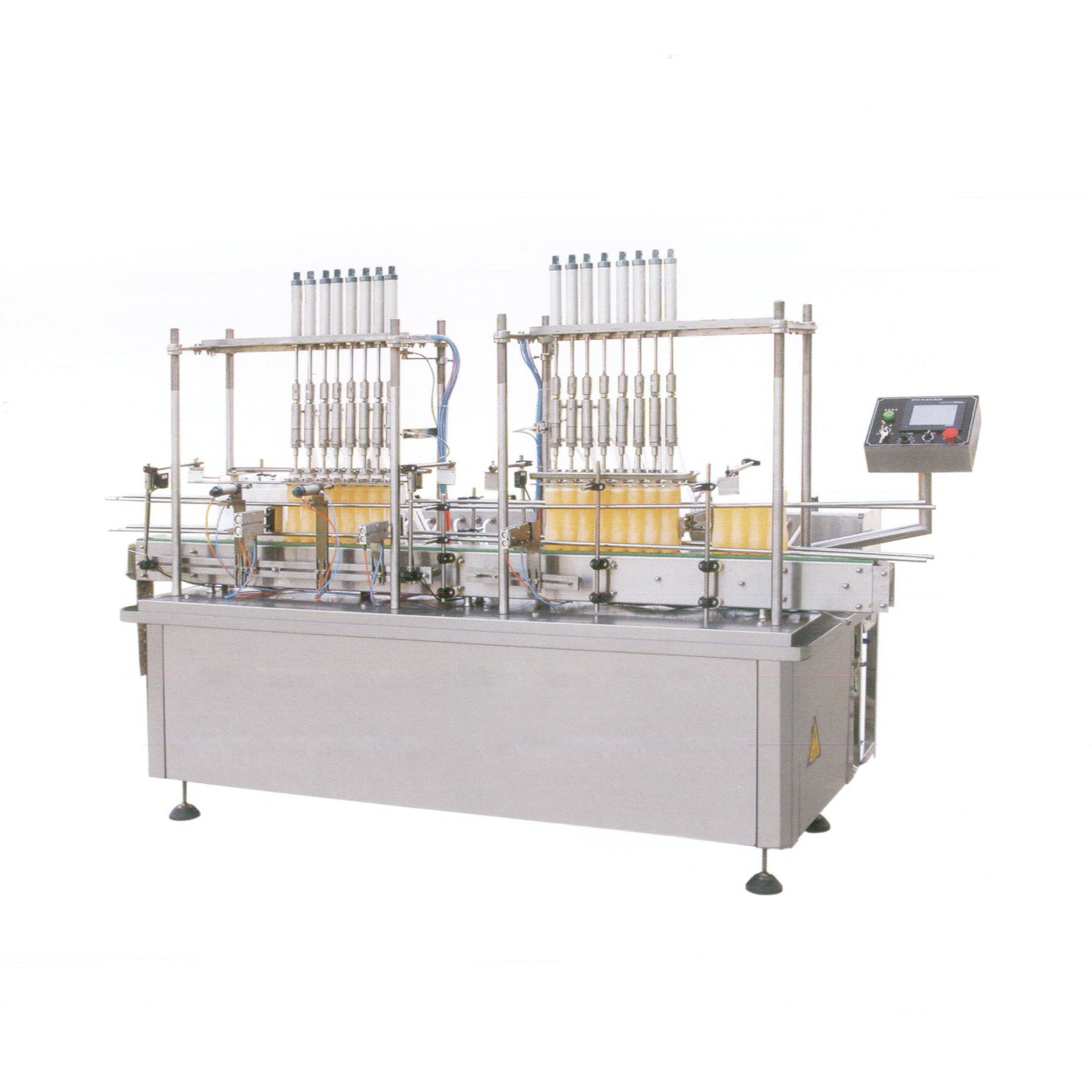

ZHYG linear overflow filling machine, applicable to pharmaceutical, food agricul ture and other industries of the easily-bubble from the liquid filling, the same as the liquid filling without bubble. This can be single used, also can be linked with other euipments, the best anti-foaming filling machine currently in domestic.
Feature
u The implementation of pump filling, overflow fillers to absorb foam & eliminate foam overllow & dripping
u Adopt low liquid hopper, convenient to clean disinfection
u Neck index clamp device, accurate positioning bottle mouth before nozzles go inte the bottles
u Convenient to adjust volume, easy to operate, change different bottle in a short time
u Machine desiagned and manufactured accordance to GMP regulation
Main technical parameter
u Option filling rang:50-5000ml
u Filling head:4,6,8,12,16
u Filling precision:≤±2%
u Request air pressure:≤0.6-0.7MPa
u Air consumption:15m3/h
u Power:220V/380V 50Hz
u Power output:≤2Kw
u Machine noise:≤50dB
u Net weight:≤800Kg
Production capacity (e.g.5000ml )
u 4 heads:≥15bpm
u 8 heads:≥30bpm
u 12 heads:≥45bpm
